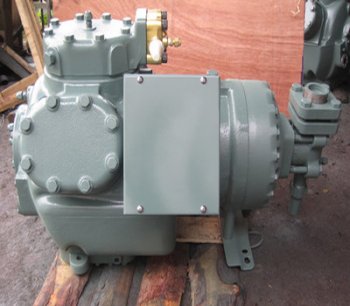

New 06EA275 06EA299 Carlyle Compressor 06EA250 06EA265 Semi-Hermetic Reciprocating Carrier 06E Compressor for Air Conditioner

PRODUCT DESCRIOTION

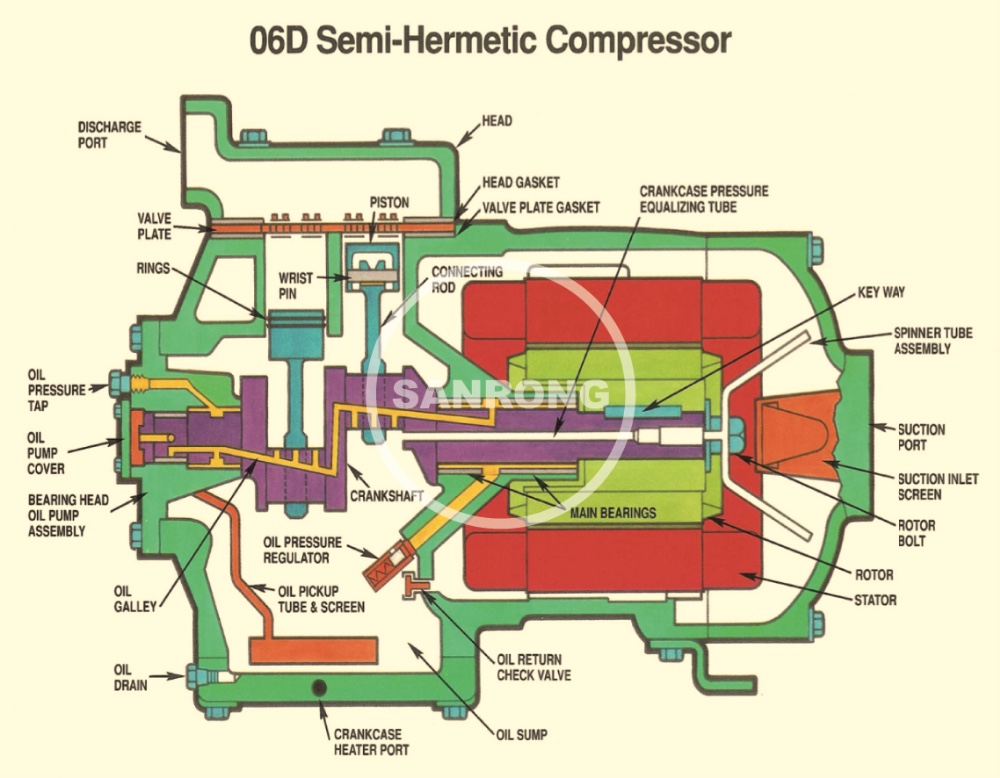

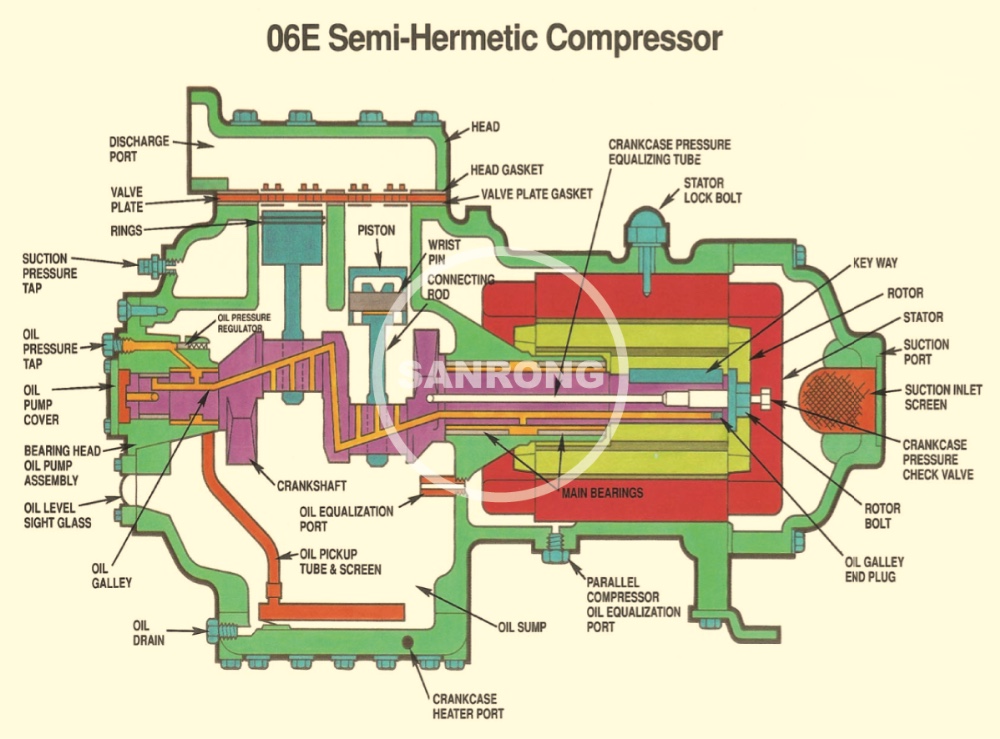

Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cool- ing, and environmental chambers. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, R-407C and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502). The compressors may be operated at 50 or 60 hertz and are UL, CE, CSA, and ISO 9002 approved. Many of the prominent features of the 06D/E compressors are listed below.

FEATURES

• High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.

• Crankcase venting system equalizes pressure during startup and assures oil return to sump.

• Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.

• Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.

• High-efficiency valves provide increased refrigerant flow and lower pressure drops.

• Electronic oil-pressure switch.

SPECIFICATIONS
